Linestop Copper PVC Steel Service Saddles and Sleeves

Linestop Service Saddles & Sleeves

499 Linestop Saddles, Clamps, Sleeves & Grips for PVC, Steel and Copper Pipe

*All sales final for tapping saddles sold, effective 1-1-2011

Comes with Brass Completion Plug and Standard Cap

Saddles are design for QT style linestop machines

Now Available 3/4 x 3/4, 1 x3 /4 and 1-1/4 x 1-1/4 For Copper Tubing and Steel/PVC pipe

Copper Saddles Specifications:

Panel: Type 304 (18-8) Stainless steel per ASTM A240
Gasket: 1/4" thick (EPDM) Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for oils, acids, alkalines, most Hydrocarbon Fluids (aliphatic), portable water, and many other chemicals within temperature range of –40^o F - +180^o F.
Lugs: Type 304 (18-8) Stainless steel per ASTM A240
Bolts and Nuts: Type 304 (18-8) Stainless steel per ASTM A193 & A194. Note: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Outlet: Type Stainless Steel 304/304L seamless, machined
All outlets are "Male Threaded NPT" outside
Inlets threaded
Brass Plug: half-hard, SAE, CA-360 per ASTM B-16
Cap: Standard MI type
Working Pressure: Maximum 150 PSI.

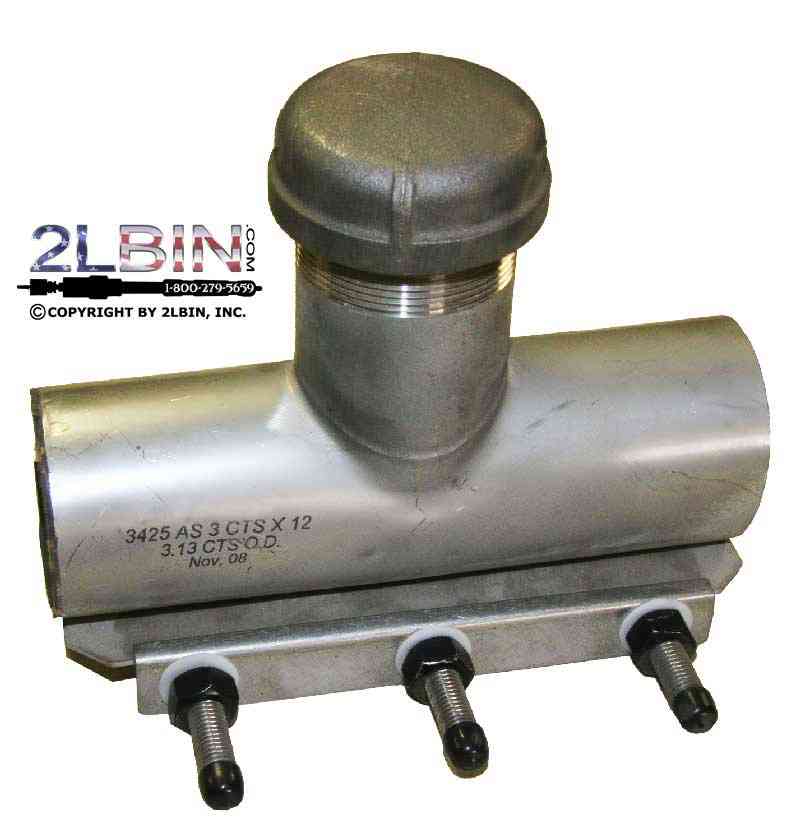

Linestop saddles for copper, PVC and steel pipeline and mains

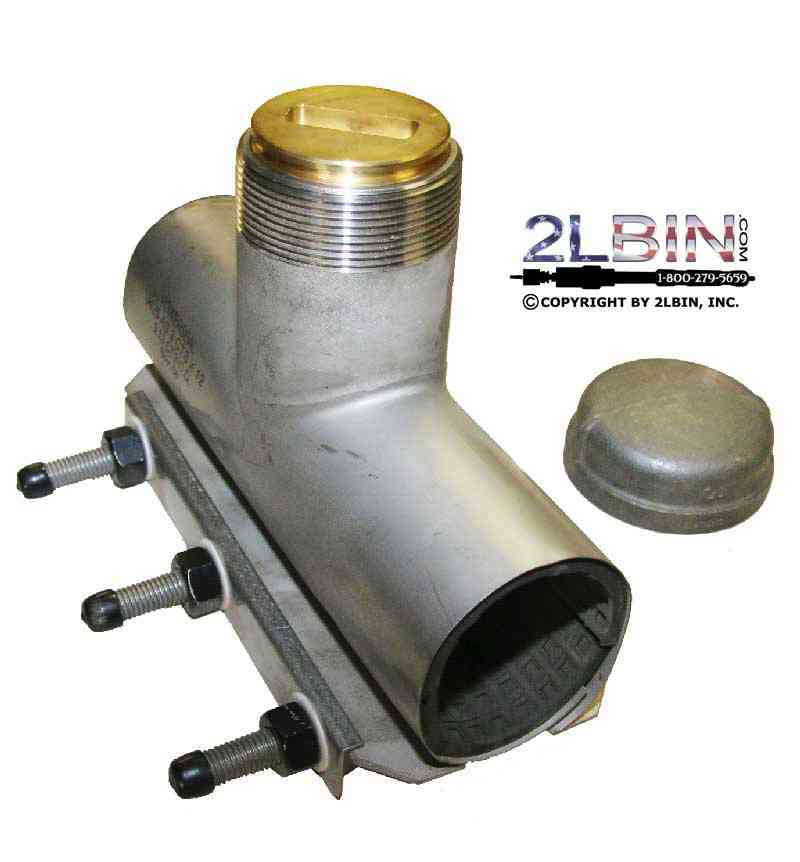

Line stopping copper, pvc and steel is possible where pipe freezing may not be

Bolt-on Linestop Saddles for Copper Pipe

Add To Cart	Size (inches)	Item #	Price
Qty:	3/4 x 3/4	LS-499-1	$ 460.00
Qty:	1 x 3/4	LS-499-2	$ 473.00
Qty:	1-1/4 x 1-1/4	LS-499-3	$ 485.00
Qty:	1-1/2 x 1-1/2	LS-499-4	$498.00
Qty:	2 x 1-1/2	LS-499-5	$498.00
Qty:	2-1/2 x 1-1/2	LS-499-6	$498.00
Qty:	3 x 12 x 3	LS-499-7	$657.00
Qty:	4 x 12 x 3	LS-499-8	$657.00
Call 1-800-279-5659	6 x 5	LS-499-9	Call 1-800-279-5659
Bolt-on Linestop Saddles for Steel & PVC Pipe
Add To Cart	Size (inches)	Item #	Price
Qty:	3/4 x 3/4	LS-499-31	$ 460.00
Qty:	1 x 3/4	LS-499-32	$ 473.00
Qty:	1-1/4 x 1-1/4	LS-499-33	$ 485.00
Qty:	1-1/2 x 1-1/2	LS-499-34	$498.00
Qty:	2 x 1-1/2	LS-499-35	$498.00
Qty:	2-1/2 x 1-1/2	LS-499-36	$498.00
Qty:	3 x 12 x 3	LS-499-37	$657.00
Qty:	4 x 12 x 3	LS-499-38	$657.00
Call 1-800-279-5659	6 x 5	LS-499-39	Call 1-800-279-5659

Tapping Saddles Pipe Type:

Copper, PVC, Steel, Cast Iron, Ductile Iron and C900

Copper, PVC and steel pipe hot tapping will be performed in most locations, including: Complexes, Telecommunications, Paper Mills, Office Buildings, Fire Protection, Systems Refineries, Schools, Chemical & Petrochemical Plants, Fossil Fuel Power Plants, Nuclear Power Plants, Hospital & Institutions, Nuclear Power Plants Hotels & Apartment, Industrial & Commercial, Production Facilities, Industry, Water & Sewage, Treatment Malls & Shopping Centers

Linestop Service Saddles & Sleeves

499 Linestop Saddles, Clamps, Sleeves & Grips for PVC, Steel and Copper Pipe

Tapping Saddles Pipe Type:

Copper, PVC, Steel, Cast Iron, Ductile Iron and C900
